SilShield MAGPS-04 Multi-Layer Anti-Graffiti Film

SilShield MAGPS-04 Multi-Layer Anti-Graffiti Film
  • SilShield MAGPS-04 Multi-Layer Anti-Graffiti Film
  • SilShield MAGPS-04 Multi-Layer Anti-Graffiti Film

Short Description:

The SilShield MAGPS multi-layer anti-graffiti film series is specifically developed and produced for the rail transit sector. This series consists of four removable PET film layers, each featuring the same high-standard anti-graffiti properties. This innovative design significantly minimizes the expenses associated with repairing vandalized window glass and enhances maintenance efficiency. The acr...


Product Details

Product Tags



The SilShield® MAGPS multi-layer anti-graffiti film series is specifically developed and produced for the rail transit sector. This series consists of four removable PET film layers, each featuring the same high-standard anti-graffiti properties. This innovative design significantly minimizes the expenses associated with repairing vandalized window glass and enhances maintenance efficiency. The acrylic adhesive layer is versatile, allowing it to adhere to various surfaces, making it suitable for both manual tinting (using water) and automotive laminator tinting (using pressure without water).

Product Features:

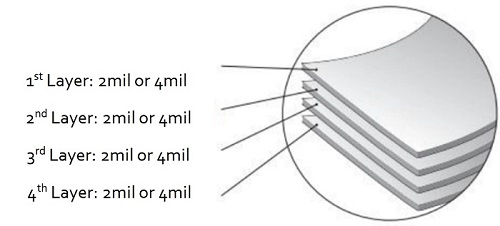

-Up to 4 layers of removable structure, greatly improve the maintenance efficiency and lower the labor cost comparing with a single layer anti-graffiti film.
-Each layer has the same excellent anti-graffiti performance.
-Offer two thickness options for different environments and customer needs.
-The surface is specially treated with anti-graffiti coating, which can effectively reduce intentional and unintentional damage, protecting the film itself and the glass substrate.
-No residual adhesive, easy to remove and refresh, the selected adhesive layer is suitable for both dry and wet adhesive method.
-Using optical level transparent PET substrate, transmittance is still excellent after tinting the film.
-Anti-graffiti grade G1 (standard NF F31-112), meaning the graffiti surface can be easily cleaned with a non-hazardous detergent.
-Successfully meet EN45545, BS6853 and ASTM standards for flammability test.


Application Area:

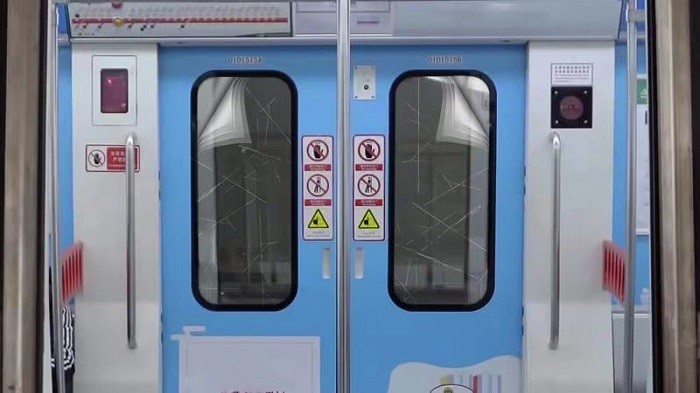

-Glasses in the windows/doors
-Wind screen
-Display panels, PIS system panels
-Tables
-Baggage carrier


Technical Datas:

Part Number

Layers

Single Layer thickness

Total Thickness

Base Material

Adhesive

Silshield

MAGPS-04

4

4mil

19.6mil (0.5mm)

Optical grade PET

Acrylic

Silshield

MAGPS-02

4

2mil

14.2mil(0.36mm)

Optical grade PET

Acrylic


Test Items

Test Standard

Result

Specific optical density of smoke generated by solid materials

ASTM E662:2015a

PASS

Surface flammability of materials using a radiant heat energy source

ASTM E162:2015b

PASS

Toxic gas sampling and analytical procedures

BSS7239:1988

PASS

Heat and visible smoke release rates for materials and products using an oxygen consumption calorimeter

ASTM E1354:2016a

PASS

Restriction on harmful substance test specific for CTA7K project

Specific for CTA7K

PASS

Substances of Very High Concern in accordance with Article 59(10) of the REACH Regulation

SVHC191

PASS

Decorating materials and indoor air limit of harmful substance for railway locomotive and vehicle

TB/T3139-2006

PASS

Flammability Test (EU)- Single layer test

EN45545

HL3

Flammability Test (England) - Single layer test

BS6853

Ia

Anti-Graffiti Grade -single layer test

NF F31-112

G1


Installations:
- Thoroughly prepare the substrate surface, ensuring it is free from oil and dust.
- Tint the film in a controlled, dust-free environment.
- You have the option to use either an automatic laminating machine or apply the film manually.
- Ensure the ambient temperature for film application is above 10 degrees Celsius.
- Note that extreme environmental conditions may impact the longevity of the products.

Ggaea-Meilleur specializes in providing flexible support and services tailored to meet the needs of our esteemed customers. We offer custom-sized film sheets and tinting services, ensuring a personalized solution for each client. Our mission is clear: we aim to empower our customers by delivering professional-grade products and innovative solutions. By doing so, we enhance their competitiveness within their respective industries, while simultaneously securing mutual success for both Ggaea-Meilleur and our valued clients.


For more information, please contact  llliu@ggaea.com
